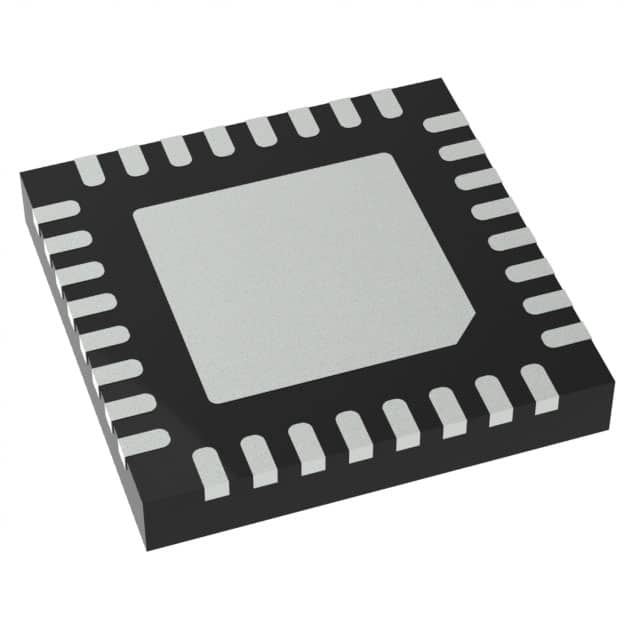

LTC2344IUH-16#TRPBF
IC ADC 16BIT SAR 32QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. SoftSpan™ series 16-bit SAR Analog-to-Digital Converter, part number LTC2344IUH-16-TRPBF. This component features a 400KSPS sampling rate per channel, offering a 16-bit resolution across four differential inputs. The architecture incorporates simultaneous sampling with a 1:1 S/H to ADC ratio. Data is output via LVDS serial and SPI interfaces. The device supports both internal and external voltage references and operates with analog and digital supply voltages of 5V. Packaged in a 32-QFN (5x5) surface-mount configuration, it is supplied on tape and reel. The operating temperature range is -40°C to 85°C. Applications include industrial control, data acquisition systems, and medical instrumentation.
Additional Information
Series: SoftSpan™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-MUX-ADC |
| Data Interface | LVDS - Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 32-QFN (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
