LTC2344CUH-18
IC ADC 18BIT SAR 32QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2344CUH-18 is an 18-bit, 400kSPS SAR Analog-to-Digital Converter. This component features a 4-channel multiplexer and a sample-and-hold circuit, offering a 4:1 S/H to ADC ratio. The LTC2344CUH-18 supports both internal and external voltage references and provides a high-speed LVDS serial data interface. Its architecture is optimized for applications requiring precise analog signal acquisition, including industrial automation, medical instrumentation, and high-fidelity audio systems. The device operates with analog and digital supply voltages ranging from 4.75V to 5.5V and is housed in a 32-lead QFN (5x5mm) package suitable for surface mounting. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |

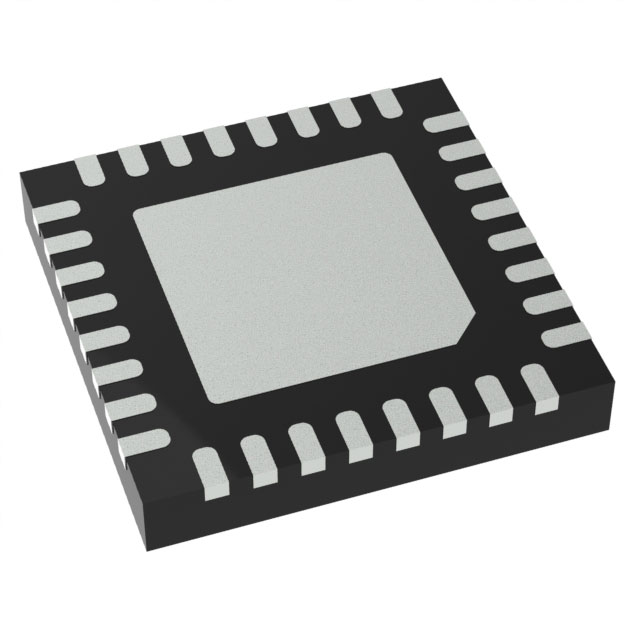

| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Configuration | S/H-MUX-ADC |
| Data Interface | LVDS - Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 4.75V ~ 5.5V |
| Voltage - Supply, Digital | 4.75V ~ 5.5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 32-QFN (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
