LTC2325IUKG-14#TRPBF

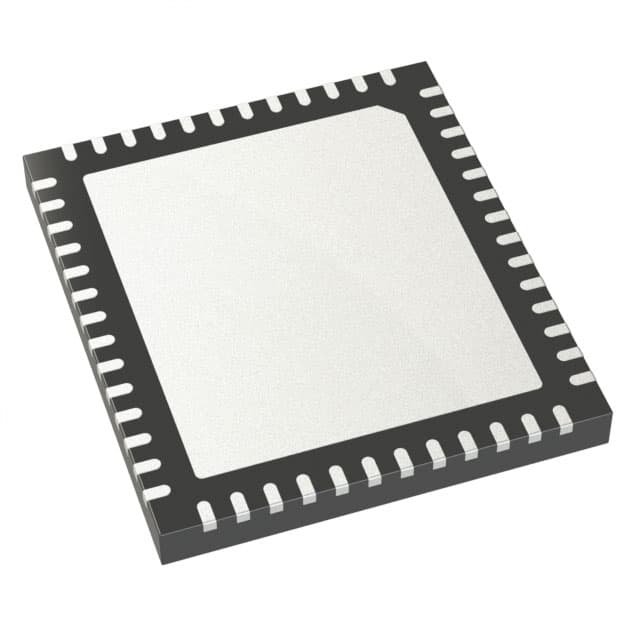

IC ADC 14BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2325IUKG-14-TRPBF, a 14-bit successive approximation register (SAR) Analog-to-Digital Converter (ADC). This component features four differential inputs and four SAR cores, enabling simultaneous sampling. The ADC boasts a sampling rate of 5 Msps per channel and offers a flexible 1:1 S/H to ADC ratio. Data is interfaced via LVDS and SPI protocols. The LTC2325IUKG-14-TRPBF supports both internal and external voltage references and operates within a temperature range of -40°C to 85°C. It is housed in a 52-QFN (7x8) package with an exposed pad, suitable for surface mounting. Analog and digital supply voltages can range from 3.13V to 3.47V or 5V. This device is utilized in applications such as medical imaging, test and measurement equipment, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
