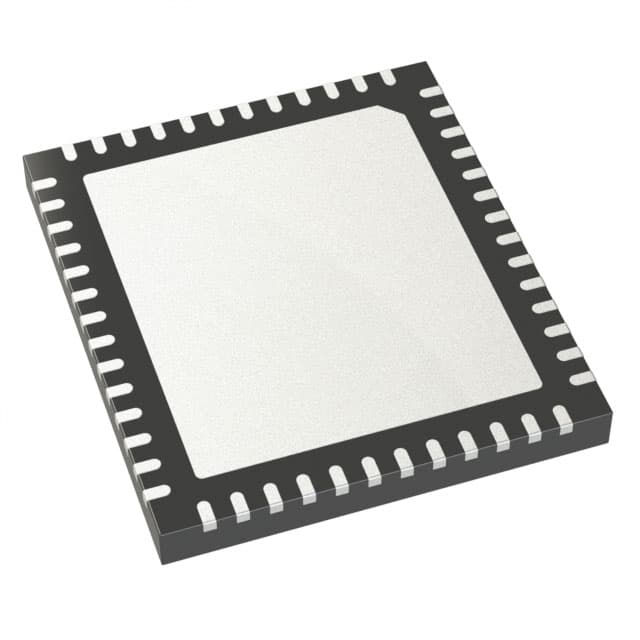

LTC2325HUKG-16#PBF
IC ADC 16BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2325HUKG-16-PBF is a 16-bit, 4-channel successive approximation register (SAR) analog-to-digital converter (ADC). This component features simultaneous sampling capabilities and supports both differential and single-ended input types. The data interface options include LVDS and SPI, providing flexibility for various system architectures. With a maximum sampling rate of 5 MSPS per channel, it is well-suited for high-speed data acquisition. The device operates from analog and digital supply voltages of 3.13V to 3.47V or 5V and is specified for an industrial temperature range of -40°C to 125°C. Packaged in a 52-QFN (7x8) with an exposed pad for enhanced thermal performance, the LTC2325HUKG-16-PBF is commonly found in applications such as medical imaging, high-performance test and measurement, and industrial control systems. It offers selectable internal or external voltage references.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
