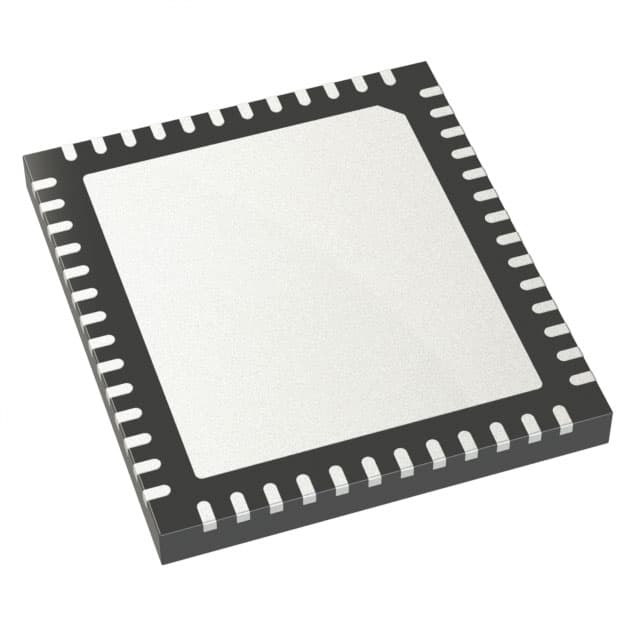

LTC2325HUKG-14#TRPBF
IC ADC 14BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2325HUKG-14-TRPBF is a 14-bit, 4-channel SAR Analog-to-Digital Converter (ADC). This component features simultaneous sampling and a 1:1 S/H to ADC ratio. It offers selectable analog and digital supply voltages ranging from 3.13V to 5V. Data transfer is facilitated via LVDS - Parallel and SPI interfaces. The device operates with differential inputs and is housed in a 52-QFN (7x8) package, suitable for surface mounting. Its operating temperature range is -40°C to 125°C. This ADC is designed for applications requiring high-precision data acquisition in industries such as test and measurement, medical imaging, and communications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
