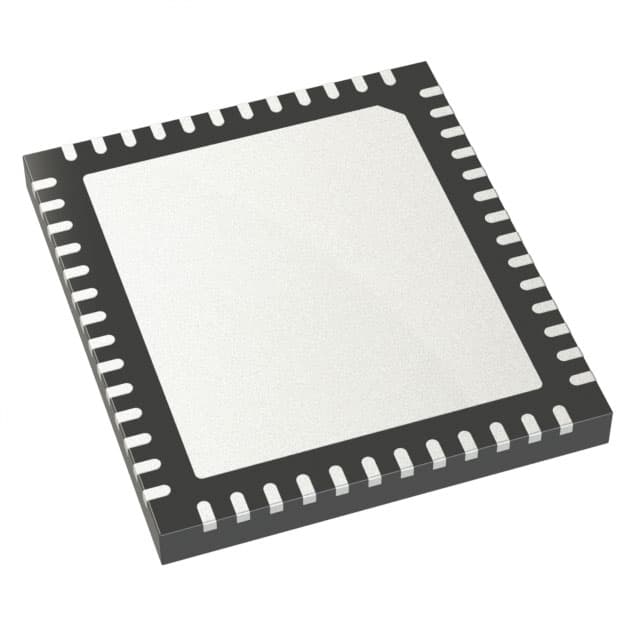

LTC2325CUKG-16#TRPBF
IC ADC 16BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2325CUKG-16-TRPBF is a 16-bit, 4-channel successive approximation register (SAR) analog-to-digital converter (ADC). This device offers a 5Msps sampling rate per channel and features simultaneous sampling capabilities. It supports both differential and single-ended input types, with a 1:1 S/H to ADC ratio. The LTC2325CUKG-16-TRPBF utilizes LVDS and SPI data interfaces for digital output. It is housed in a 52-QFN (7x8) package with an exposed pad, designed for surface mounting. Operating across a temperature range of 0°C to 70°C, this component is suitable for applications requiring high-speed data acquisition, including industrial automation, medical imaging, and high-performance test and measurement equipment. The voltage supply ranges from 3.13V to 3.47V for both analog and digital domains, with an additional 5V option.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
