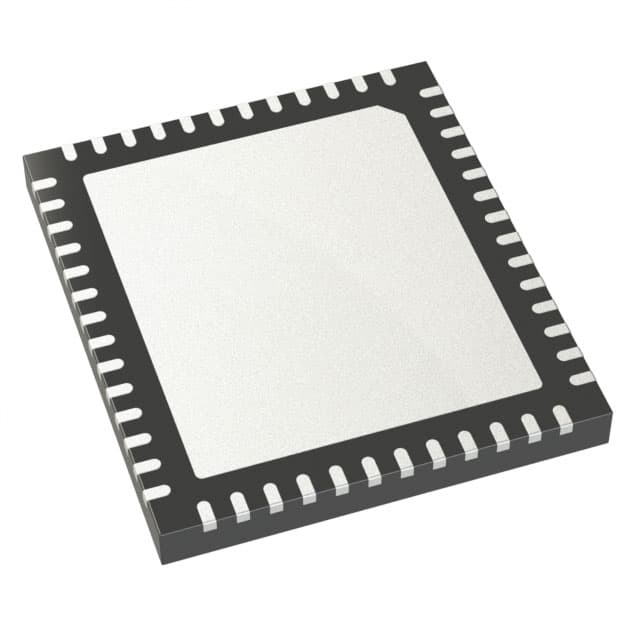

LTC2324CUKG-14#TRPBF
IC ADC 14BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2324CUKG-14-TRPBF is a 14-bit, 4-channel SAR Analog-to-Digital Converter (ADC). This component features simultaneous sampling and a 1:1 S/H-to-ADC ratio, enabling high-accuracy data acquisition. The LTC2324CUKG-14-TRPBF offers a sampling rate of up to 2Msps per channel. It supports both internal and external voltage references and operates with analog and digital supply voltages ranging from 3.13V to 5V. Data is interfaced via LVDS - Parallel and SPI protocols. The device is housed in a 52-QFN (7x8) package, suitable for surface mounting. This ADC is commonly employed in industrial automation, medical imaging, and high-speed data acquisition systems. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
