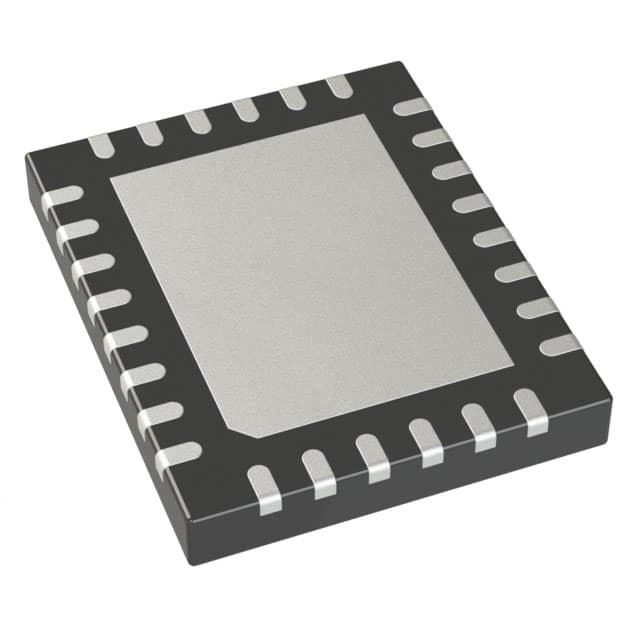

LTC2323IUFD-12#TRPBF
IC ADC 12BIT SAR 28QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2323IUFD-12-TRPBF is a 12-bit, 2-channel SAR analog-to-digital converter. This component features simultaneous sampling with a 1:1 S/H to ADC ratio. It offers both differential and pseudo-differential input types, configurable with internal or external references. The device supports a sampling rate of 5 MSps per channel. Data is transmitted via a serial LVDS interface. Operating across a temperature range of -40°C to 85°C, it is available in a 28-QFN (4x5) surface-mount package, supplied on tape and reel. Analog supply voltage can range from 3.13V to 3.47V or 5V, with digital supply voltage between 1.71V and 2.63V. This component is suitable for applications in data acquisition, medical imaging, and high-speed test and measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial, Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 1.71V ~ 2.63V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 28-QFN (4x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
