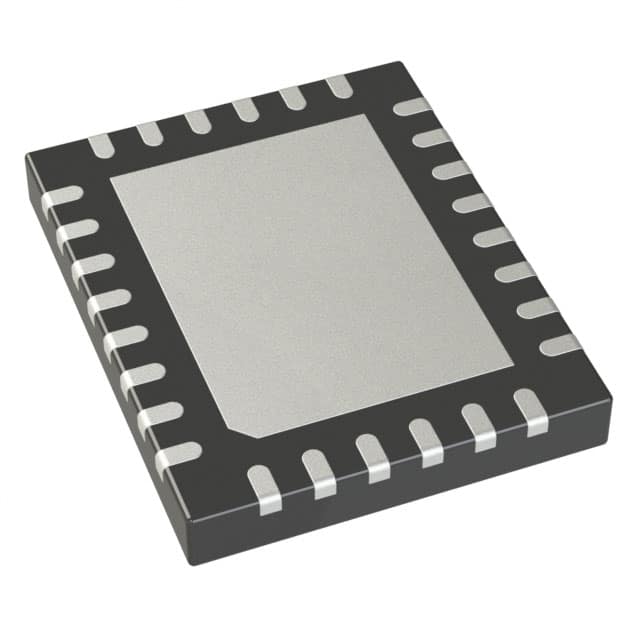

LTC2321IUFD-16#TRPBF
IC ADC 16BIT SAR 28QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2321IUFD-16-TRPBF is a 16-bit analog-to-digital converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers two simultaneous sampling input channels, configurable as differential or pseudo-differential. The device supports a sampling rate of 2 MSPS per channel. Data is transmitted via a serial LVDS interface. Its 28-QFN (4x5) exposed pad package is suitable for surface mounting. The LTC2321IUFD-16-TRPBF operates with analog and digital supply voltages ranging from 3.13V to 3.47V and 5V. It incorporates both internal and external reference options and is specified for operation within a temperature range of -40°C to 85°C. This ADC is often utilized in applications such as medical imaging, test and measurement, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial, Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 28-QFN (4x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
