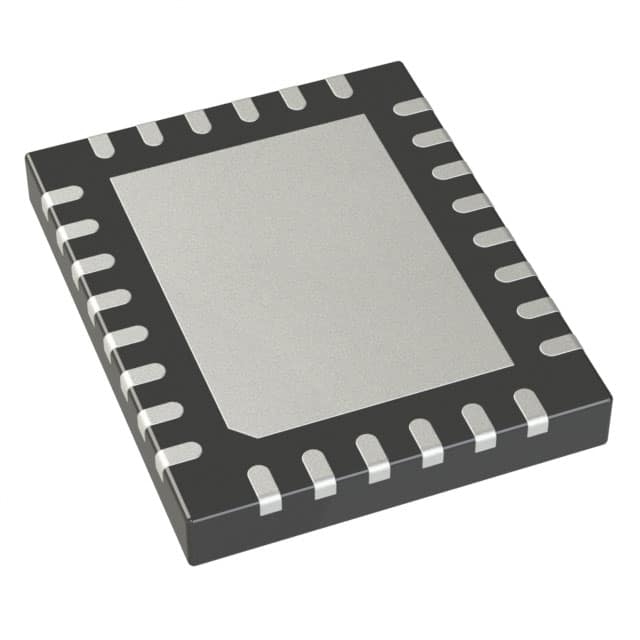

LTC2321HUFD-12#TRPBF
IC ADC 12BIT SAR 28QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2321HUFD-12-TRPBF, a 12-bit, 2-channel SAR Analog to Digital Converter. This component features simultaneous sampling with differential and pseudo-differential input types, offering high precision for demanding applications. The ADC operates with a sampling rate of up to 2Msps per channel and supports both external and internal reference types. Its configuration includes a sample-and-hold amplifier and a serial data interface utilizing LVDS technology. The device is housed in a 28-QFN (4x5) package, suitable for surface mounting. Power supply requirements are flexible, accommodating analog and digital voltages from 3.13V to 5V. This component is well-suited for use in medical imaging, test and measurement, and high-speed data acquisition systems. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial, Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 28-QFN (4x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
