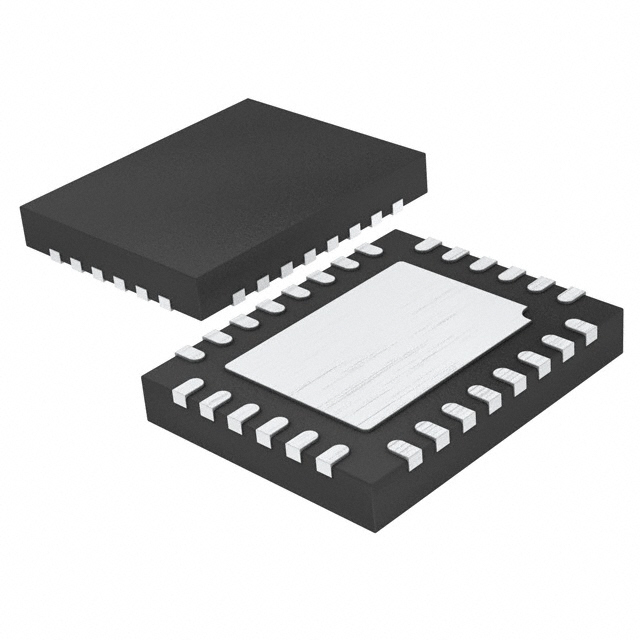

LTC2321CUFD-12
IC ADC 12BIT SAR 28QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2321CUFD-12, a 12-bit SAR Analog-to-Digital Converter, offers dual-channel simultaneous sampling with a maximum sampling rate of 2 Msps per channel. This component features differential and pseudo-differential input types, supporting both external and internal voltage references. The LTC2321CUFD-12 utilizes an LVDS serial data interface for efficient data transfer. It is housed in a 28-QFN (4x5) exposed pad package, suitable for surface mounting. Operating within a temperature range of 0°C to 70°C, this device finds application in data acquisition systems, medical imaging, and industrial control. The dual voltage supply ranges (3.13V-3.47V and 4.75V-5.25V) provide design flexibility.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial, Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 28-QFN (4x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
