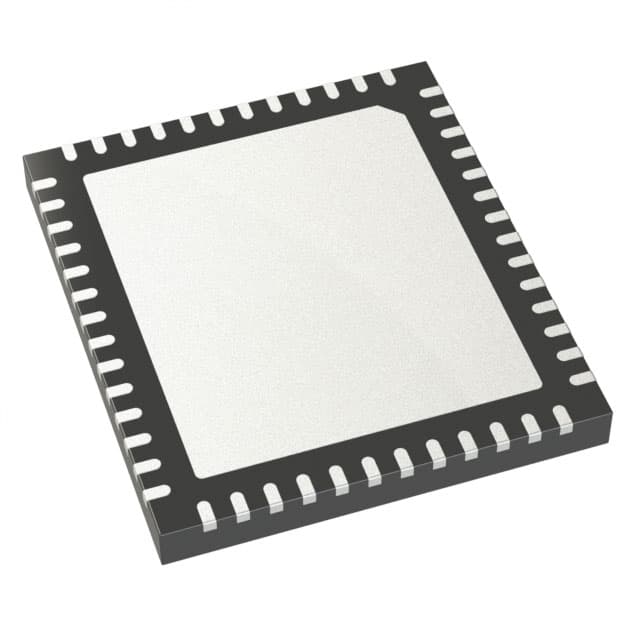

LTC2320HUKG-14#TRPBF
IC ADC 14BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc., a 14-bit SAR Analog to Digital Converter (ADC) with Part Number LTC2320HUKG-14-TRPBF. This component features 8 differential inputs and a 52-QFN (7x8) package, suitable for surface mount applications. It offers an impressive sampling rate of 1.5 MSPS per channel and operates across a wide temperature range of -40°C to 125°C. The LTC2320HUKG-14-TRPBF boasts 4 SAR ADCs with simultaneous sampling capability and a 2:1 S/H to ADC ratio. Data interface options include LVDS - Parallel and SPI, with support for both external and internal references. This device is utilized in demanding applications across industrial, medical, and communications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-MUX-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 1.5M |
| Input Type | Differential |
| Number of Inputs | 8 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 4 |
