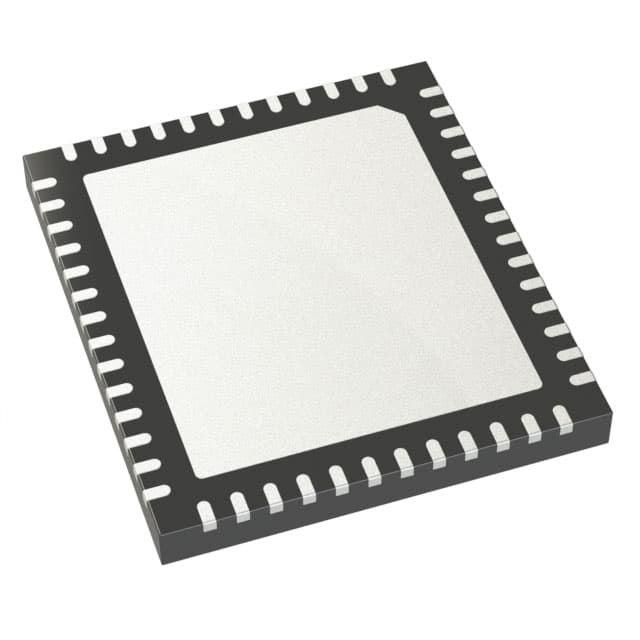

LTC2320CUKG-16#TRPBF
IC ADC 16BIT SAR 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2320CUKG-16-TRPBF is a 16-bit, 8-input SAR Analog-to-Digital Converter (ADC) featuring 4 internal ADCs. This component offers simultaneous sampling capabilities with a 1.5Msps sampling rate per channel. The device supports both internal and external voltage references and operates with analog and digital supply voltages ranging from 3.13V to 5V. Its configuration includes a Sample-and-Hold (S/H) multiplexer and ADC, with a S/H to ADC ratio of 2:1. The LTC2320CUKG-16-TRPBF utilizes a 52-QFN (7x8) package with an exposed pad and is supplied on tape and reel. Data is interfaced via LVDS - Parallel and SPI. Typical applications include data acquisition systems, medical imaging, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-MUX-ADC |
| Data Interface | LVDS - Parallel, SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Sampling Rate (Per Second) | 1.5M |
| Input Type | Differential |
| Number of Inputs | 8 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 4 |
