LTC2311IMSE-16#WPBF
16-B, 5MSPS DIFF IN ADC W/ WIDEManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

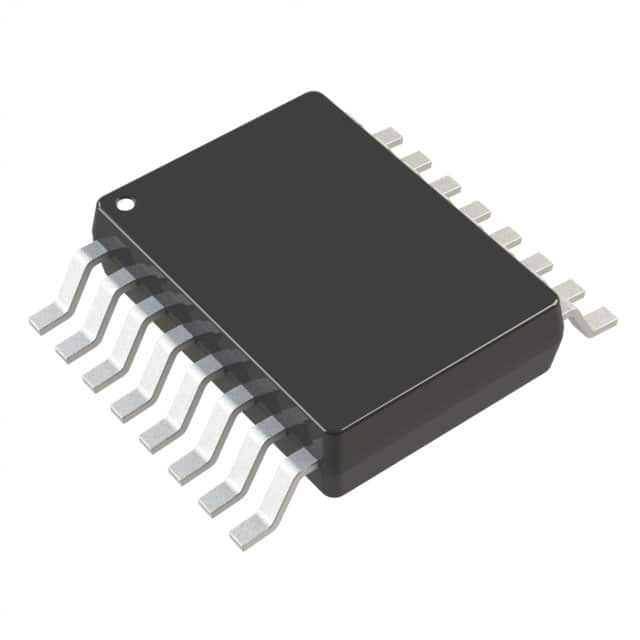

The Analog Devices Inc. LTC2311IMSE-16-WPBF is a 16-bit Analog to Digital Converter (ADC) with a 5MSPS sampling rate. This SAR architecture converter features a single differential input and an integrated Sample-and-Hold circuit. It offers a 1:1 S/H to ADC ratio and supports both external and internal reference types. Data is transferred via a serial LVDS or SPI interface. The device is designed for surface mounting with a 16-MSOP-EP package (16-TFSOP with exposed pad). Operating across a temperature range of -40°C to 85°C, it is qualified to AEC-Q100 standards, making it suitable for automotive applications. Analog supply voltage ranges from 3.13V to 3.47V and 4.75V to 5.25V, with identical digital supply voltage ranges.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 16-MSOP-EP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Grade | Automotive |
| Number of A/D Converters | 1 |
| Qualification | AEC-Q100 |
