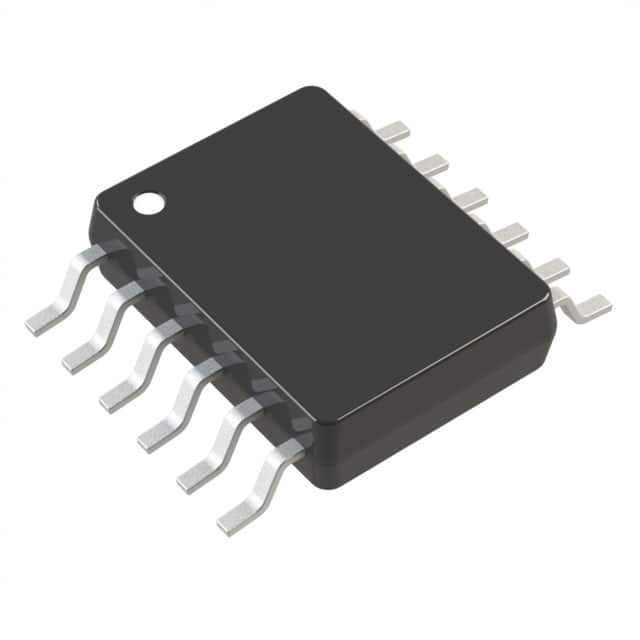

LTC2305IMS#TRPBF
IC ADC 12BIT SAR 12MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2305IMS-TRPBF is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for high-performance applications. This component features a 2-channel multiplexer with sample-and-hold circuitry and offers a 12-bit resolution for precise signal conversion. The LTC2305IMS-TRPBF utilizes an I2C serial interface for data communication, supporting selectable addressing for multi-device configurations. Its architecture supports both differential and single-ended input types. Operating with analog and digital supply voltages of 5V, this device is suitable for operation across a temperature range of -40°C to 85°C. The component is supplied in a 12-TSSOP surface-mount package, delivered on tape and reel. This ADC finds utility in industrial automation, medical instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 14k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 12-MSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
