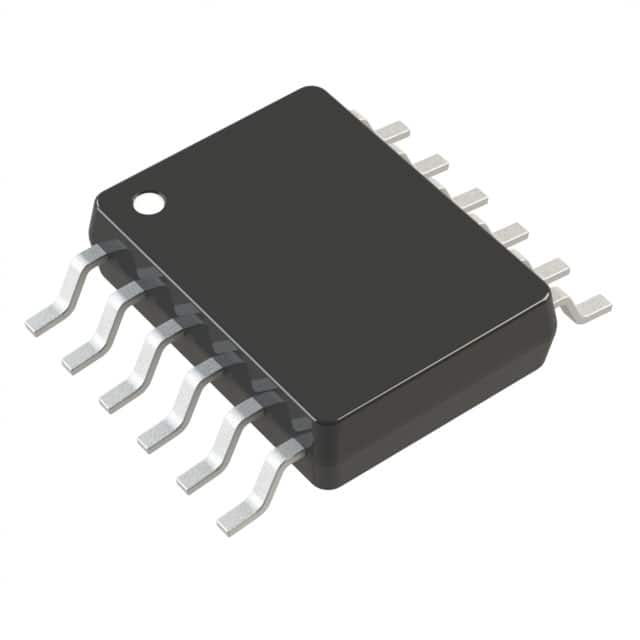

LTC2301IMS#TRPBF
IC ADC 12BIT SAR 12MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2301IMS-TRPBF is a 12-bit successive approximation (SAR) analog-to-digital converter (ADC) designed for high-speed data acquisition. This component features a single-ended or differential input with a 1:1 Sample-and-Hold ratio. The device provides a selectable I2C data interface and supports both internal and external voltage references. Operating across a temperature range of -40°C to 85°C, it is housed in a compact 12-TSSOP (0.118", 3.00mm width) package, supplied on tape and reel for automated assembly. The LTC2301IMS-TRPBF is suitable for applications in industrial, medical, and consumer electronics where precise analog signal conversion is critical. It operates with analog and digital supply voltages of 5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 14k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 12-MSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
