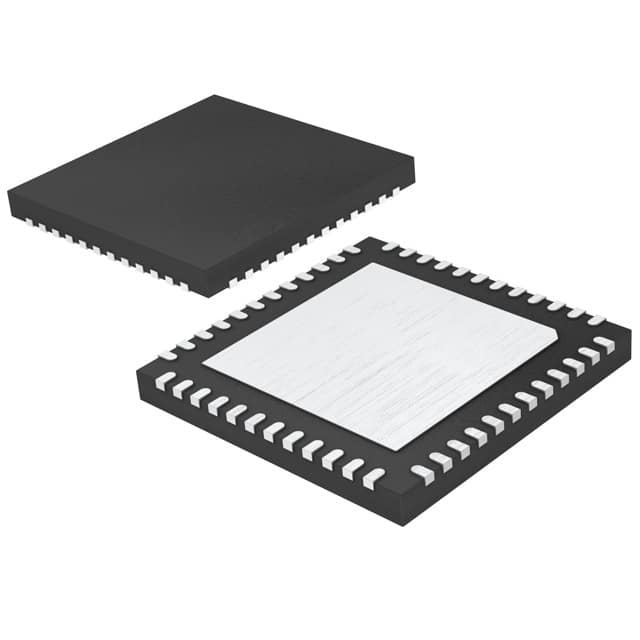

LTC2269CUK#TRPBF
IC ADC 16BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2269CUK-TRPBF, a 16-bit pipelined Analog-to-Digital Converter (ADC). This single-channel device offers a 20MSPS sampling rate and features differential inputs with a 1:1 S/H to ADC ratio. The ADC supports both external and internal reference types and operates with analog and digital supply voltages between 1.7V and 1.9V. Its parallel data interface, compatible with LVDS, is delivered in a 48-QFN (7x7) package, suitable for surface mounting. The LTC2269CUK-TRPBF is designed for applications requiring high-speed, high-resolution signal acquisition, commonly found in medical imaging, communications infrastructure, and test and measurement equipment. The component operates within a 0°C to 70°C temperature range.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
