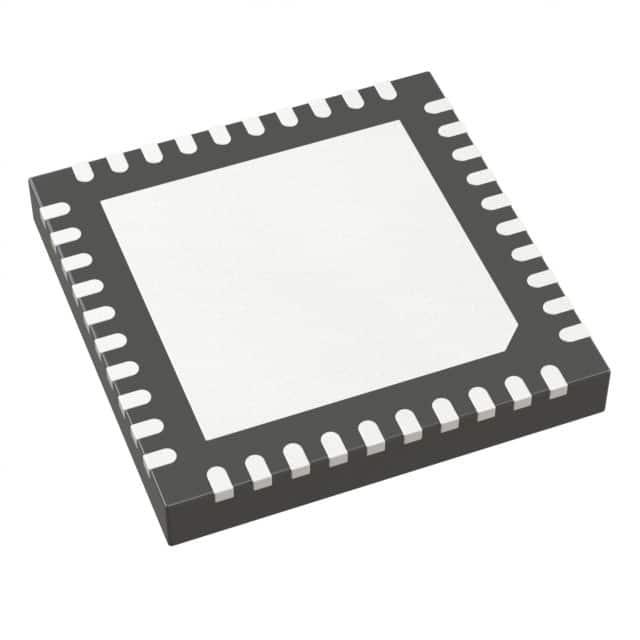

LTC2267CUJ-14#PBF
IC ADC 14BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2267CUJ-14-PBF is a 14-bit, dual-channel, pipelined Analog-to-Digital Converter (ADC). This device offers a sampling rate of up to 105 Msps per channel and features simultaneous sampling capability. Its architecture includes a Sample-and-Hold (S/H) circuit integrated with the ADC. The data interface utilizes LVDS for serial output. The LTC2267CUJ-14-PBF supports both external and internal reference types and operates with analog and digital supply voltages between 1.7V and 1.9V. It is housed in a 40-QFN (6x6) exposed pad package suitable for surface mounting. This component is well-suited for applications in high-speed data acquisition systems, medical imaging, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
