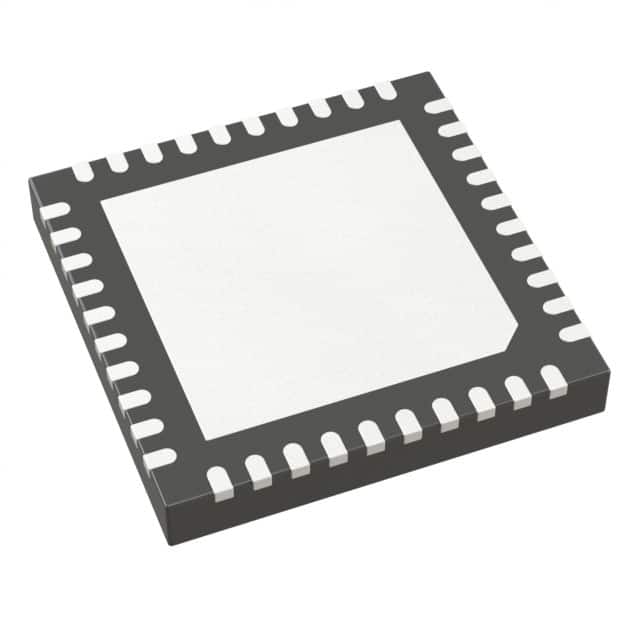

LTC2267CUJ-12#TRPBF
IC ADC 12BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2267CUJ-12-TRPBF is a 12-bit, 2-channel pipelined analog-to-digital converter (ADC). This component is designed for high-speed data acquisition, featuring a sampling rate of 105MSPS per channel. It offers simultaneous sampling capabilities with its 1:1 S/H-to-ADC ratio, ensuring accurate capture of transient signals. The device utilizes an LVDS serial data interface for efficient data transfer and supports both external and internal reference types. Its differential input type and pipelined architecture are well-suited for applications requiring precise signal conversion in sectors such as telecommunications, medical imaging, and test and measurement equipment. The LTC2267CUJ-12-TRPBF is supplied in a 40-QFN (6x6) package with exposed pad and is available on tape and reel for automated assembly processes. It operates with analog and digital supply voltages ranging from 1.7V to 1.9V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
