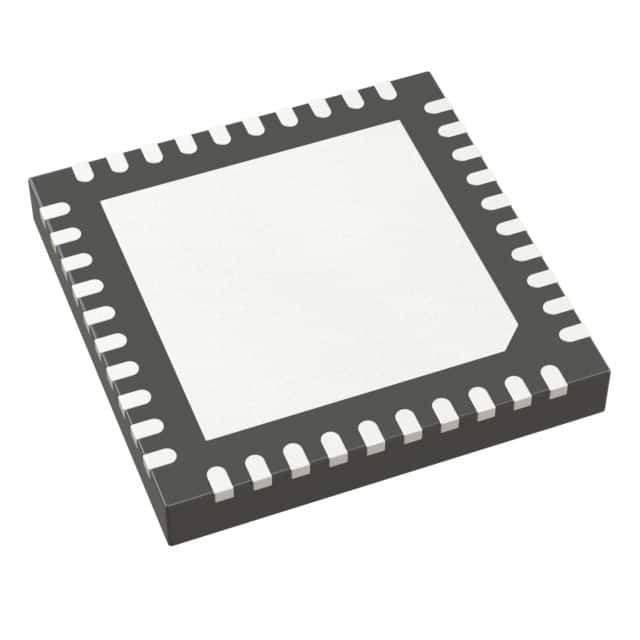

LTC2266CUJ-14#TRPBF
IC ADC 14BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2266CUJ-14-TRPBF is a dual 14-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features simultaneous sampling across its two differential input channels, enabling precise capture of high-frequency signals. With a maximum sampling rate of 80 MSPS per channel, it is suitable for demanding applications in communications, instrumentation, and imaging systems. The device offers selectable external or internal voltage references and operates with analog and digital supply voltages between 1.7V and 1.9V. Its 40-lead QFN (6x6mm) package with an exposed pad facilitates efficient thermal management for surface mount applications. The pipelined architecture ensures high throughput while maintaining excellent linearity and dynamic performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
