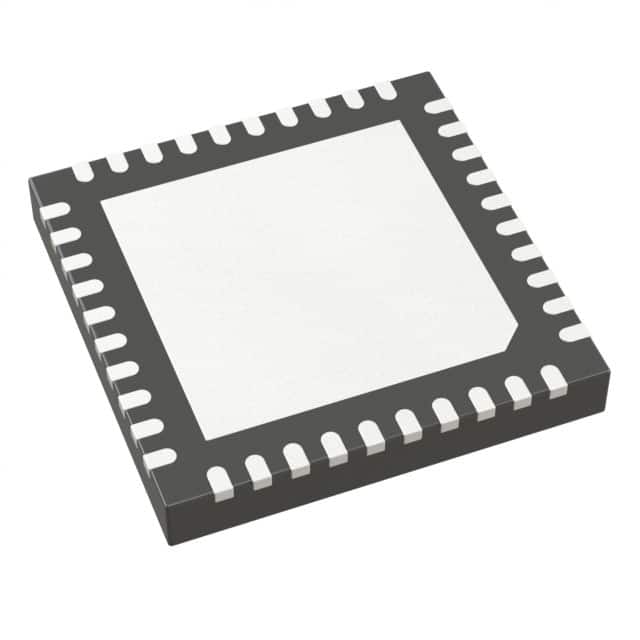

LTC2266CUJ-14#PBF
IC ADC 14BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2266CUJ-14-PBF is a dual 14-bit, 80 MSPS pipelined Analog-to-Digital Converter (ADC). This component features simultaneous sampling capabilities for its two differential inputs. The device offers a flexible reference type, supporting both external and internal references. Its digital output is delivered via a serial LVDS interface. Designed for efficient board integration, it is housed in a 40-QFN (6x6mm) package with an exposed pad and is suitable for surface mounting. The operating voltage range for both analog and digital supplies is between 1.7V and 1.9V. This ADC is utilized in applications requiring high-speed data acquisition and signal processing within industries such as telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
