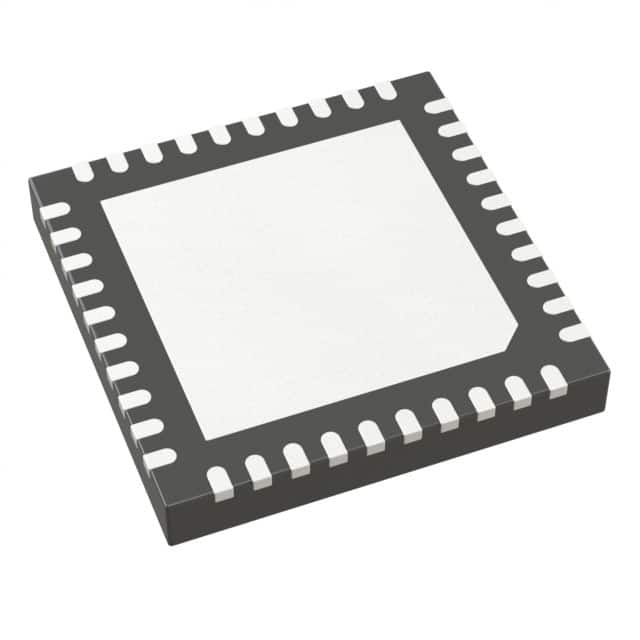

LTC2259IUJ-16#PBF
IC ADC 16BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2259IUJ-16-PBF is a 16-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input channel with a sampling rate of up to 80 MSPS. The LTC2259IUJ-16-PBF utilizes an internal or external reference and offers a 1:1 Sample-and-Hold to ADC ratio. Its data interface is available in both LVDS and parallel formats, facilitating integration into various system architectures. The device operates with analog and digital supply voltages between 1.7V and 1.9V, and is specified for operation across a temperature range of -40°C to 85°C. Packaged in a 40-QFN (6x6) with an exposed pad, this converter is suitable for surface-mount applications. It finds use in demanding sectors such as wireless communications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
