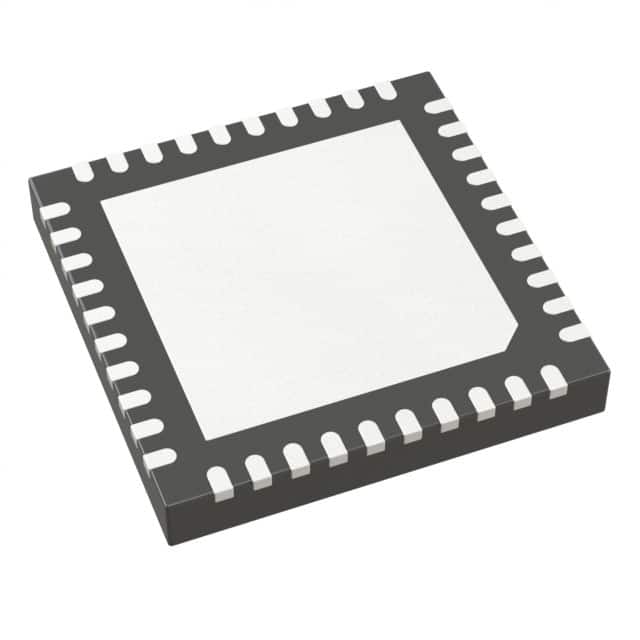

LTC2258CUJ-12#TRPBF
IC ADC 12BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2258CUJ-12-TRPBF is a 12-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input with a sampling rate of 65 MSPS, suitable for demanding applications. The architecture employs a Sample-and-Hold (S/H) followed by a pipelined ADC, providing efficient conversion. Data is output via parallel LVDS interfaces. The LTC2258CUJ-12-TRPBF operates with analog and digital supply voltages of 1.7V to 1.9V, with an operating temperature range of 0°C to 70°C. It is supplied in a 40-QFN (6x6) package, surface-mount configured, and delivered on tape and reel. This ADC finds utility in communication systems, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
