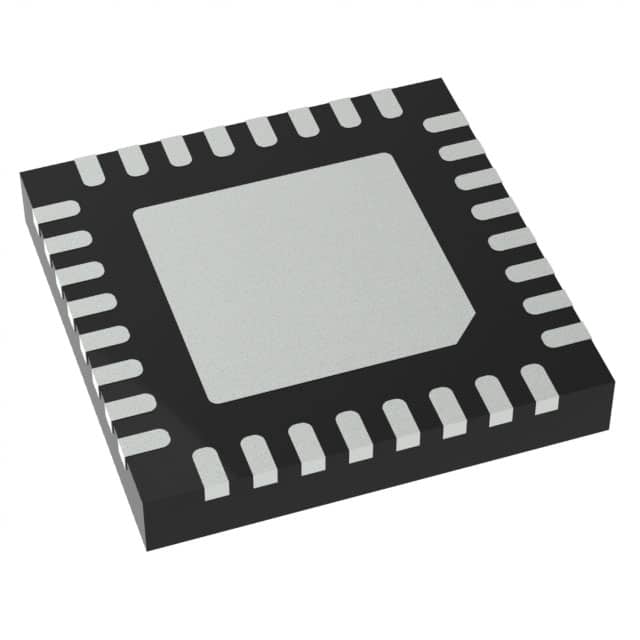

LTC2249CUH#TRPBF
IC ADC 14BIT PIPELINED 32QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2249CUH-TRPBF is a 14-bit, 80MSPS analog-to-digital converter (ADC) featuring a pipelined architecture. This component offers a single input with selectable differential or single-ended operation. The LTC2249CUH-TRPBF utilizes a 32-QFN (5x5mm) exposed pad package, suitable for surface mounting. It supports both external and internal voltage references and operates with analog and digital supply voltages ranging from 2.7V to 3.4V. The data interface is parallel, and the device is specified for operation within a 0°C to 70°C temperature range. This ADC is commonly found in applications within the communications, medical imaging, and test and measurement industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.4V |
| Voltage - Supply, Digital | 2.7V ~ 3.4V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-QFN (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
