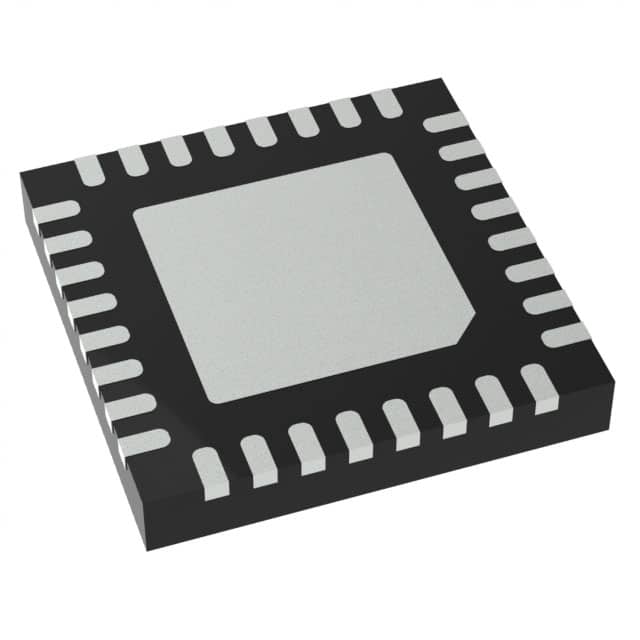

LTC2247IUH#TRPBF
IC ADC 14BIT PIPELINED 32QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2247IUH-TRPBF, a 14-bit pipelined analog-to-digital converter (ADC). This single-input device offers a sampling rate of 40 Msps with a flexible input stage supporting both differential and single-ended signals. The pipelined architecture ensures high throughput while maintaining excellent linearity. The LTC2247IUH-TRPBF features a parallel data interface for efficient data transfer and supports both internal and external reference types. It is housed in a 32-QFN (5x5) package with an exposed pad for enhanced thermal performance and is designed for surface-mount applications. Operating within an analog and digital supply voltage range of 2.7V to 3.4V, this component is suitable for use in high-speed data acquisition systems across various industries including telecommunications and medical imaging. The device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.4V |
| Voltage - Supply, Digital | 2.7V ~ 3.4V |
| Sampling Rate (Per Second) | 40M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-QFN (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
