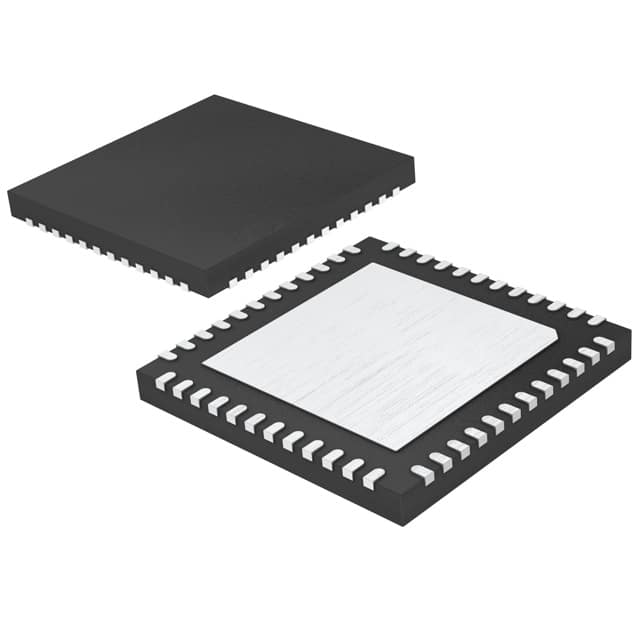

LTC2224CUK#TRPBF
IC ADC 12BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2224CUK-TRPBF is a 12-bit, 135MSPS pipelined analog-to-digital converter. This component features a single input channel configurable for differential or single-ended operation. The ADC offers a parallel data interface and is housed in a 48-QFN (7x7) package with an exposed pad. It supports both internal and external voltage references and operates with analog and digital supply voltages between 3.1V and 3.5V. Designed for surface mounting, the LTC2224CUK-TRPBF is suitable for applications in wireless communications, medical imaging, and high-speed data acquisition systems. This device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.1V ~ 3.5V |
| Voltage - Supply, Digital | 3.1V ~ 3.5V |
| Sampling Rate (Per Second) | 135M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
