LTC2223CUK#PBF
IC ADC 12BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

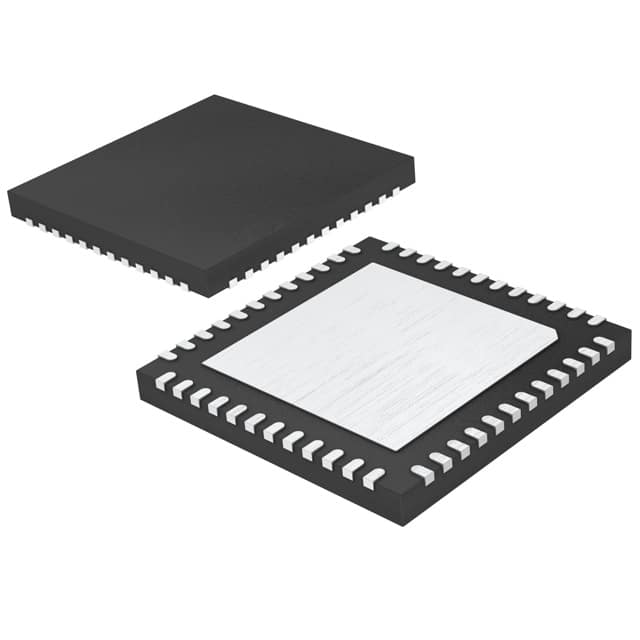

The Analog Devices Inc. LTC2223CUK-PBF is a 12-bit pipelined analog-to-digital converter (ADC). This component features a high sampling rate of 80 MSPS, making it suitable for demanding applications in telecommunications, medical imaging, and test and measurement equipment. It offers a single input channel with selectable single-ended or differential input types. The converter utilizes an internal or external reference and provides a 1:1 S/H to ADC ratio. Data is output via parallel LVDS interfaces. The LTC2223CUK-PBF is housed in a 48-QFN (7x7) package with an exposed pad for improved thermal performance and is designed for surface mount applications. It operates within an analog and digital supply voltage range of 3.1V to 3.5V and has an operating temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.1V ~ 3.5V |
| Voltage - Supply, Digital | 3.1V ~ 3.5V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
