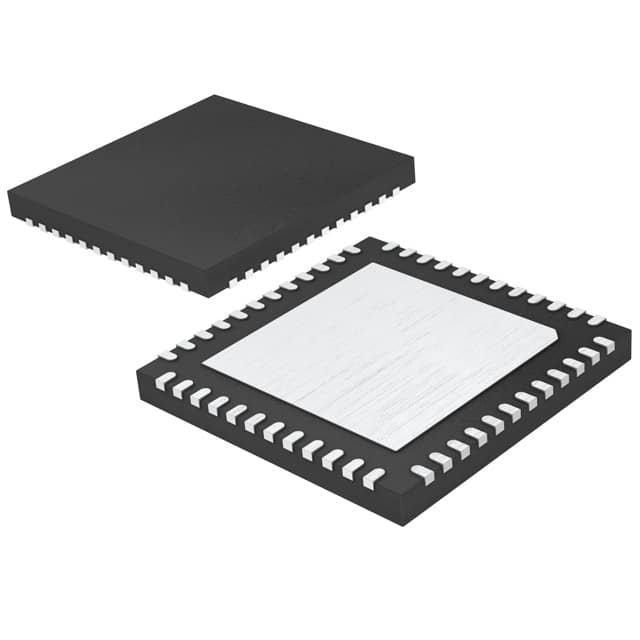

LTC2222CUK-11#PBF
IC ADC 12BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2222CUK-11-PBF is a 12-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input and a pipelined architecture, achieving a sampling rate of up to 105 MSPS. It offers selectable internal or external voltage references and supports both differential and single-ended input types. The LTC2222CUK-11-PBF provides flexible data output through parallel and LVDS interfaces. Operating within analog and digital supply voltages from 3.1V to 3.5V, this device is suitable for demanding applications in areas such as telecommunications, medical imaging, and test and measurement equipment. The component is supplied in a 48-lead QFN (7x7) package for surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.1V ~ 3.5V |
| Voltage - Supply, Digital | 3.1V ~ 3.5V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
