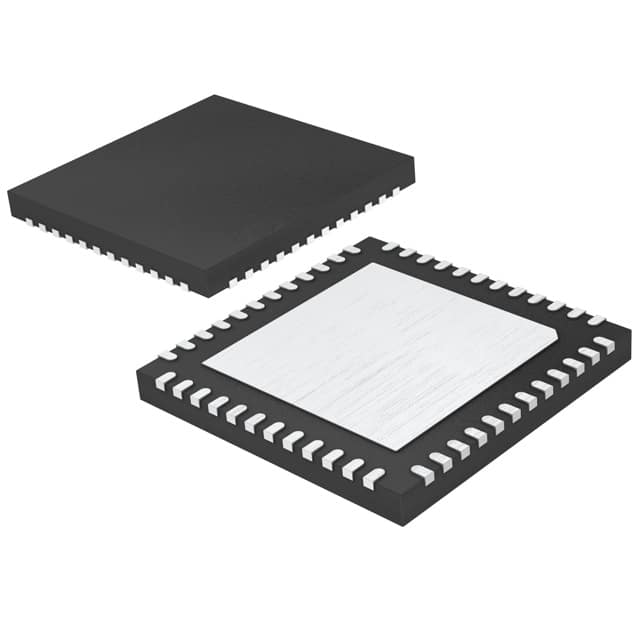

LTC2205IUK#TRPBF
IC ADC 16BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2205IUK-TRPBF is a 16-bit pipelined Analog-to-Digital Converter (ADC). This single-channel component features a sampling rate of up to 65 MSPS and offers a configurable input with a Sample-and-Hold (S/H) amplifier. The data interface is parallel, designed for high throughput applications. It supports both external and internal reference types, with an integrated Programmable Gain Amplifier (PGA) for signal conditioning. The device operates within a voltage range of 3.135V to 3.465V for both analog and digital supplies and is specified for operation across an industrial temperature range of -40°C to 85°C. The LTC2205IUK-TRPBF is supplied in a 48-QFN (7x7) package, presented in tape and reel packaging. This ADC is well-suited for demanding applications in medical imaging, high-speed data acquisition, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
