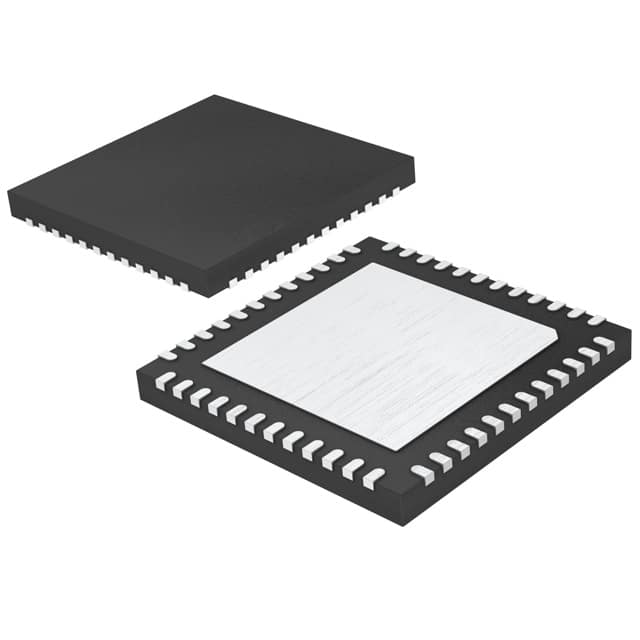

LTC2201CUK#TRPBF
IC ADC 16BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2201CUK-TRPBF is a 16-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This single-channel device features a 20MSPS sampling rate and a parallel data interface, making it suitable for demanding applications. Its architecture includes Sample-and-Hold (S/H) functionality and an internal or external reference. The LTC2201CUK-TRPBF offers selectable input ranges and a programmable gain amplifier (PGA) for optimized signal conditioning. Packaged in a 48-QFN (7x7) surface-mount configuration and supplied on tape and reel, this component operates within an industrial temperature range of 0°C to 70°C. The device supports analog and digital supply voltages between 3.135V and 3.465V. This ADC finds application in areas such as digital communications, medical imaging, and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
