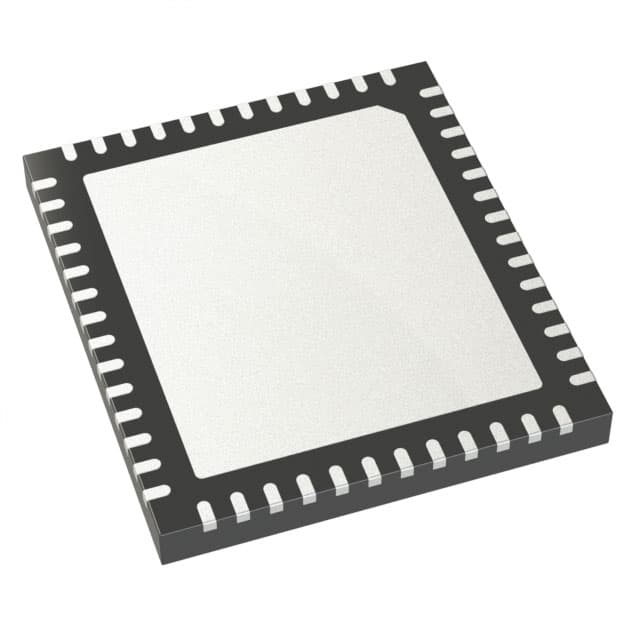

LTC2174IUKG-14#TRPBF
IC ADC 14BIT PIPELINED 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2174IUKG-14-TRPBF is a 14-bit, 4-channel, high-speed pipelined analog-to-digital converter. Featuring simultaneous sampling, this device offers a robust solution for demanding applications. The pipelined architecture enables a maximum sampling rate of 105 MSPS per channel, with a 1:1 S/H-to-ADC ratio. The differential input type and configurable external or internal reference provide design flexibility. Data is output via an LVDS serial interface. This component operates within an industrial temperature range of -40°C to 85°C, with analog and digital supply voltages between 1.7V and 1.9V. Packaged in a 52-QFN (7x8) with exposed pad, suitable for surface mounting, the LTC2174IUKG-14-TRPBF finds application in areas such as high-speed data acquisition, medical imaging, and communications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
