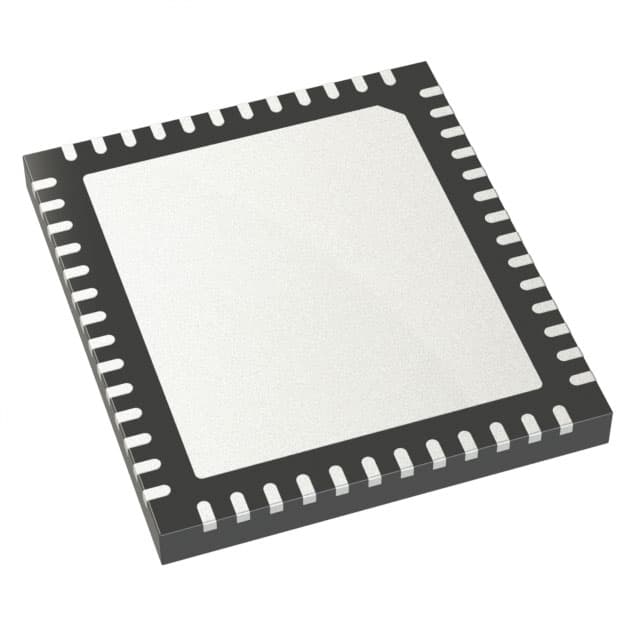

LTC2171CUKG-12#TRPBF
IC ADC 12BIT PIPELINED 52QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2171CUKG-12-TRPBF is a 12-bit pipelined Analog-to-Digital Converter (ADC) featuring four simultaneous sampling input channels. This component offers a high sampling rate of 40MSPS per channel, delivering robust performance for demanding applications. Its architecture supports differential input and provides both internal and external reference options. The device operates with analog and digital supply voltages between 1.7V and 1.9V, and is specified for operation within a 0°C to 70°C temperature range. Packaged in a 52-QFN (7x8mm) with an exposed pad for enhanced thermal management, the LTC2171CUKG-12-TRPBF is suitable for surface mount assembly. Its serial LVDS data interface facilitates efficient data transfer. This ADC is commonly employed in high-speed data acquisition systems, test and measurement equipment, and medical imaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 40M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 52-QFN (7x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
