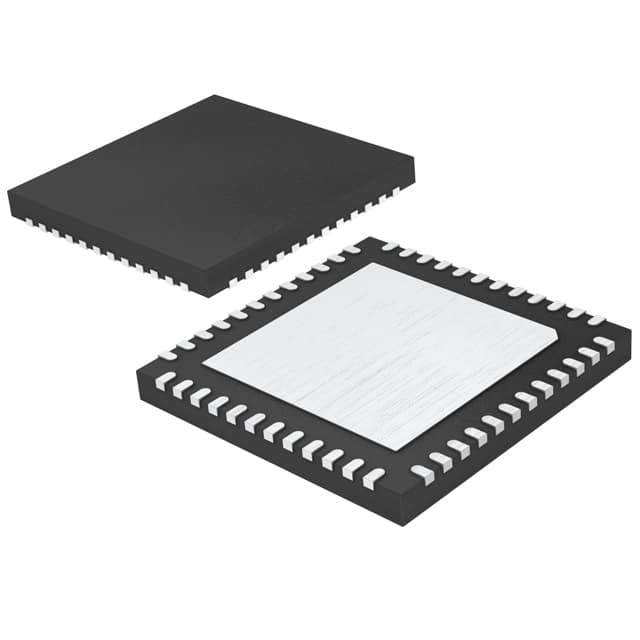

LTC2159IUK#TRPBF
IC ADC 16BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2159IUK-TRPBF is a 16-bit, 20 MSPS pipelined analog-to-digital converter (ADC) featuring a single differential input and a 1:1 S/H:ADC ratio. This component offers a parallel data interface, including LVDS, and supports both external and internal reference types. Packaged in a compact 48-QFN (7x7) with an exposed pad, it is designed for surface mount applications. The LTC2159IUK-TRPBF operates within a temperature range of -40°C to 85°C, with analog and digital supply voltages between 1.7V and 1.9V. Its architecture makes it suitable for high-speed data acquisition systems across various industries, including test and measurement, communications, and medical imaging. This component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
