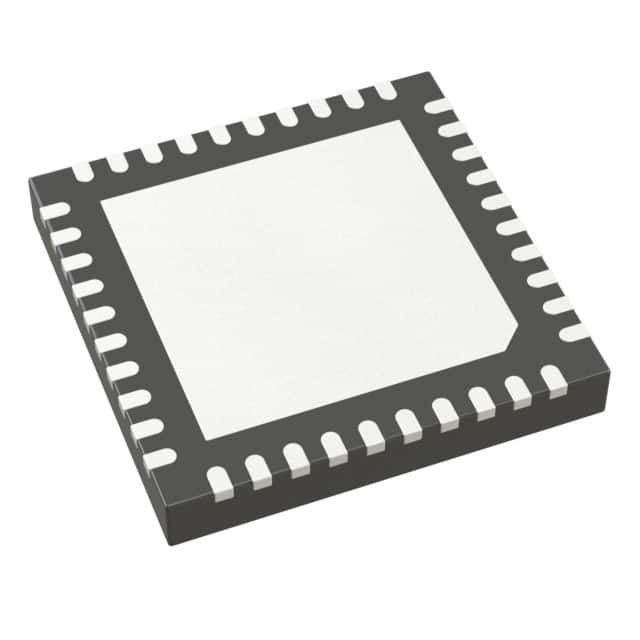

LTC2151IUJ-14#TRPBF
IC ADC 14BIT PIPELINED 40QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2151IUJ-14-TRPBF is a 14-bit pipelined Analog-to-Digital Converter (ADC). This single-channel device offers a high sampling rate of 210 MSPS, making it suitable for demanding data acquisition applications. It features a differential input type and supports both external and internal reference options. The architecture includes a Sample-and-Hold (S/H) amplifier preceding the pipelined ADC. Data is output via a parallel LVDS interface. The component operates with analog and digital supply voltages ranging from 1.7V to 1.9V and is specified for operation across a temperature range of -40°C to 85°C. It is supplied in a 40-QFN (6x6mm) package on tape and reel. This device finds application in areas such as high-speed communications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 210M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 40-QFN (6x6) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
