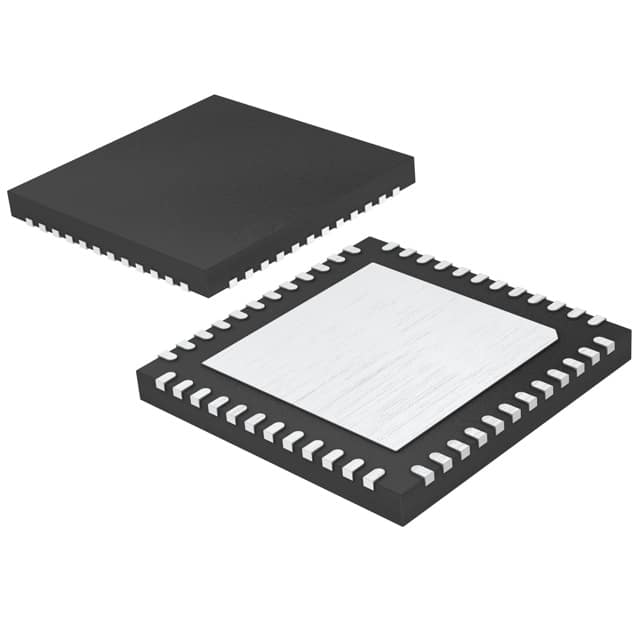

LTC2123CUK#TRPBF
IC ADC 14BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2123CUK-TRPBF, a dual-channel, 14-bit pipelined analog-to-digital converter (ADC). This component features simultaneous sampling capabilities, an S/H-ADC configuration, and a 1:1 ratio for sample-and-hold to ADC function. The LTC2123CUK-TRPBF boasts a maximum sampling rate of 250 MSPS per channel and offers both internal and external reference options. It utilizes a differential input type and supports the JESD204B data interface standard. Supplied in a 48-QFN (7x7mm) package with an exposed pad, this surface-mount device operates within a 0°C to 70°C temperature range. The analog and digital supply voltage requirements are both within the 1.7V to 1.9V range. This versatile ADC finds application in demanding sectors such as telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
