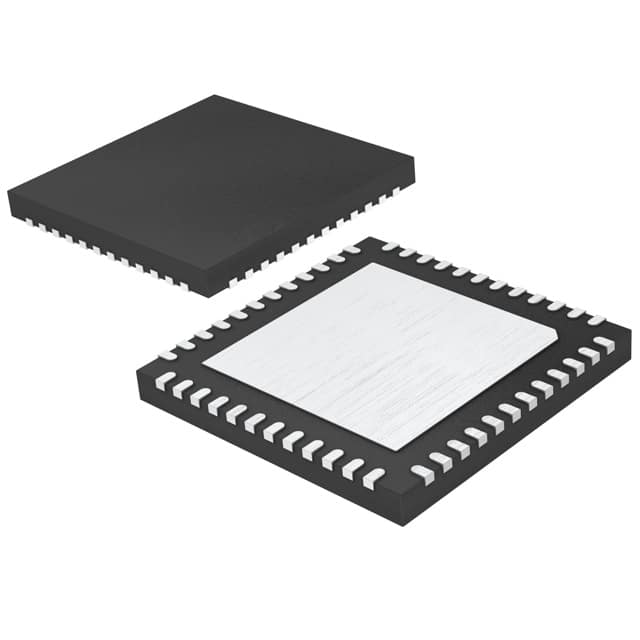

LTC2122CUK#TRPBF
IC ADC 14BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2122CUK-TRPBF is a dual-channel, 14-bit pipelined analog-to-digital converter (ADC) designed for high-speed data acquisition. Featuring simultaneous sampling capabilities, this component offers a 170 MSPS sampling rate per channel. The device utilizes a pipelined architecture with a S/H-ADC configuration and supports a 1:1 S/H to ADC ratio. It accepts differential analog inputs and provides a JESD204B data interface for efficient serial communication. The LTC2122CUK-TRPBF operates with analog and digital supply voltages between 1.7V and 1.9V. This surface mount component is housed in a 48-QFN (7x7) package, supplied on tape and reel. It is suitable for applications in test and measurement, medical imaging, and high-performance communications systems. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
