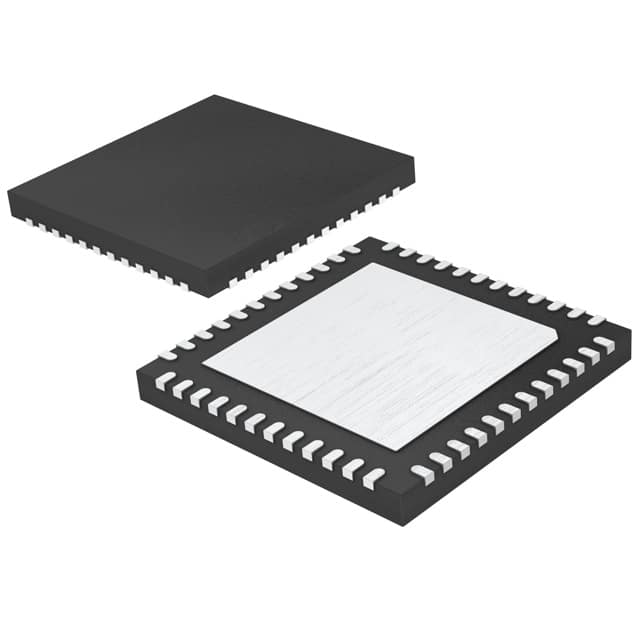

LTC2122CUK#PBF
IC ADC 14BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2122CUK-PBF is a 14-bit, 170Msps dual-channel pipelined analog-to-digital converter (ADC). This component features simultaneous sampling and a 1:1 S/H-to-ADC ratio, enabling precise capture of high-speed analog signals. The LTC2122CUK-PBF utilizes a JESD204B data interface for efficient serial data transmission and supports both external and internal voltage references. Its differential input type and pipelined architecture contribute to its high performance. Designed for surface mounting, it is supplied in a 48-QFN (7x7) package. This device operates within an analog and digital supply voltage range of 1.7V to 1.9V and has an operating temperature range of 0°C to 70°C. Applications include high-speed data acquisition, digital signal processing, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
