LTC1863LIGN#WTRPBF
IC ADC 12BIT SAR 16SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

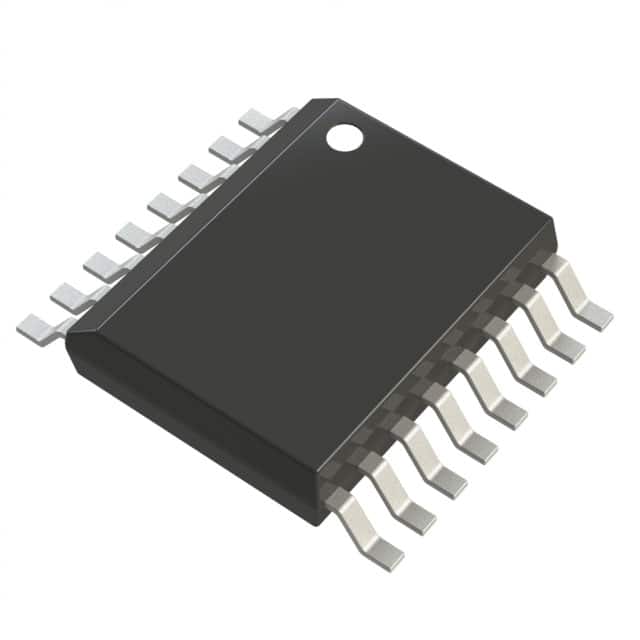

Analog Devices Inc. presents the LTC1863LIGN-WTRPBF, a 12-bit, 8-channel Analog to Digital Converter (ADC) utilizing a Successive Approximation Register (SAR) architecture. This component features a multiplexer (MUX) with sample-and-hold (S/H) circuitry integrated with the ADC. The data interface is SPI compatible, facilitating communication with microcontrollers and other digital systems. Designed for surface mount applications, it is supplied in a 16-SSOP package. The LTC1863LIGN-WTRPBF operates with analog and digital supply voltages ranging from 4.75V to 5.25V and offers a sampling rate of up to 200kSPS. It supports both differential and single-ended input types and accommodates external or internal voltage references. This device is qualified to AEC-Q100 standards, making it suitable for demanding automotive applications. The component is delivered in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 16-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Grade | Automotive |
| Number of A/D Converters | 1 |
| Qualification | AEC-Q100 |
