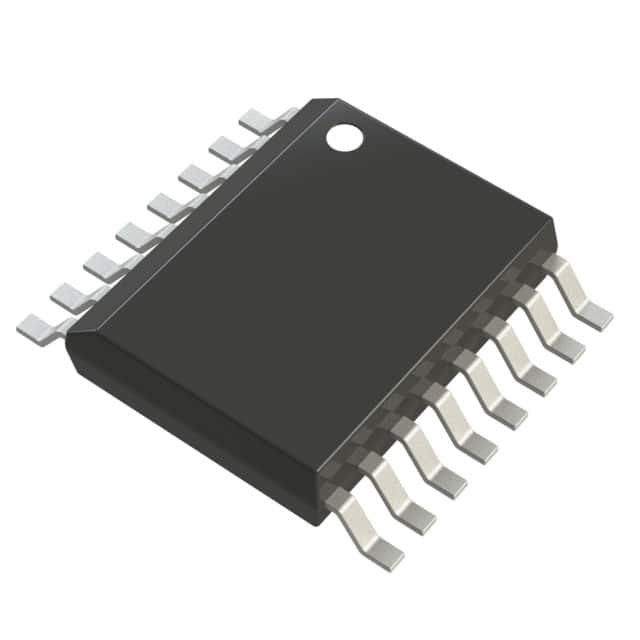

LTC1863IGN#WTRPBF
IC ADC 12BIT SAR 16SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. delivers the LTC1863IGN-WTRPBF, a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features 8 single-ended or differential inputs multiplexed to a single SAR ADC. Its architecture supports a 1:1 Sample-and-Hold to ADC ratio, with selectable internal or external voltage references. The LTC1863IGN-WTRPBF operates with analog and digital supply voltages between 4.75V and 5.25V and achieves a sampling rate of up to 200 kSPS. Data is communicated via an SPI interface. Qualified to AEC-Q100 standards and designed for operation within a -40°C to 85°C temperature range, this device is suitable for automotive applications. It is supplied in a 16-SSOP (0.154", 3.90mm width) package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 16-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Grade | Automotive |
| Number of A/D Converters | 1 |
| Qualification | AEC-Q100 |
