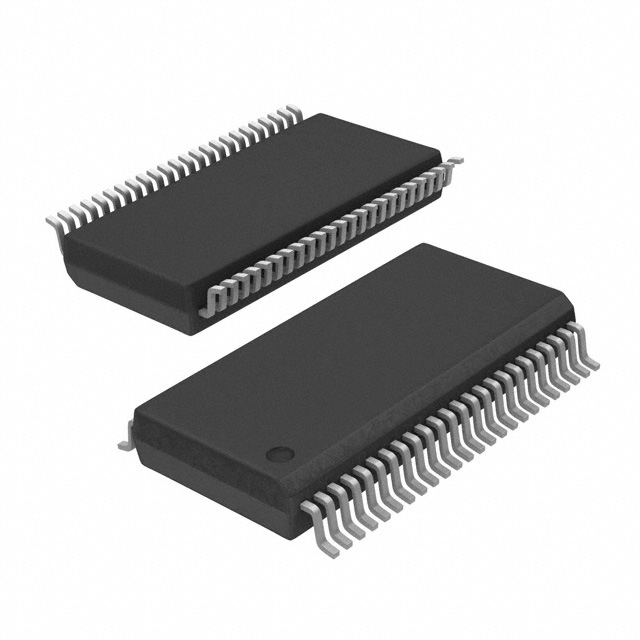

LTC1746CFW#PBF
IC ADC 14BIT PIPELINED 48TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1746CFW-PBF is a 14-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input with a 1:1 S/H-ADC ratio, enabling accurate conversion of analog signals. The pipelined architecture supports a sampling rate of up to 25 MSPS, making it suitable for applications requiring rapid signal capture. It offers both external and internal reference types, providing flexibility in design. The LTC1746CFW-PBF utilizes a parallel data interface for efficient data transfer. Its operational temperature range is 0°C to 70°C. The device is housed in a 48-TSSOP package, designed for surface mounting. This ADC finds application in areas such as digital signal processing, medical imaging, and high-speed instrumentation. The analog and digital supply voltages are both 5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 25M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
