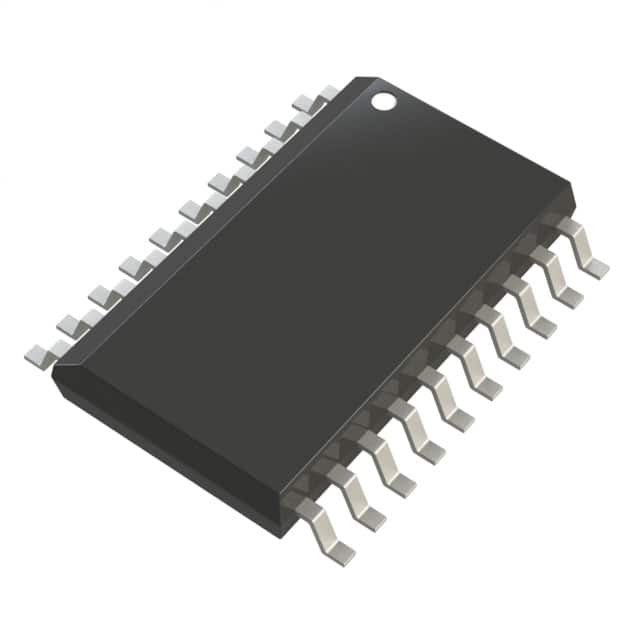

LTC1609AISW#TRPBF
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1609AISW-TRPBF is a 16-bit, successive approximation (SAR) analog-to-digital converter (ADC) designed for high-precision data acquisition. This component features a single-ended input and a 1:1 sample-and-hold to ADC ratio, enabling efficient signal conversion. The LTC1609AISW-TRPBF offers a sampling rate of 200kSPS and supports both internal and external voltage references. Data is communicated via an SPI interface, facilitating seamless integration into digital systems. Operating across an industrial temperature range of -40°C to 85°C, this device is housed in a 20-SOIC package. Its robust design makes it suitable for applications in industrial automation, medical instrumentation, and test and measurement equipment. The component utilizes 5V for both analog and digital supply voltages.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SO |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
