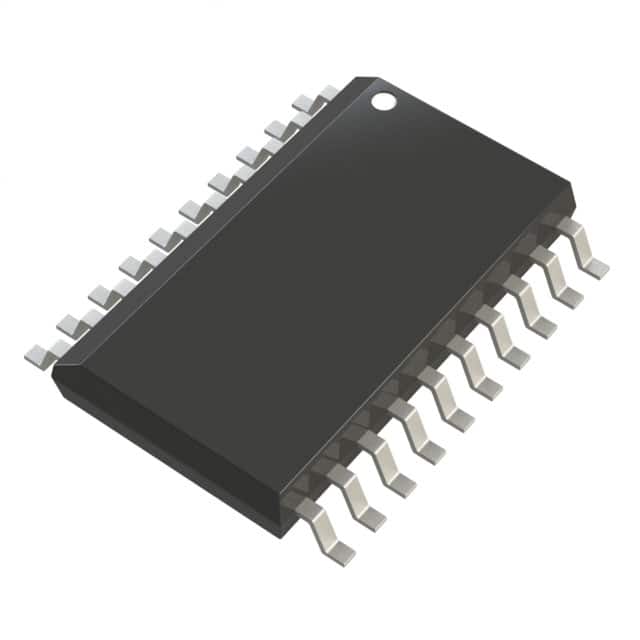

LTC1609ACSW#TRPBF
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1609ACSW-TRPBF is a 16-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers a single-ended analog input and a sampling rate of up to 200kSPS. The device supports both external and internal reference types and provides a 1:1 S/H to ADC ratio. Data is communicated via an SPI interface. Supplied in a 20-SOIC package, the LTC1609ACSW-TRPBF is designed for surface mounting and operates with analog and digital supply voltages of 5V. Its specifications make it suitable for applications in data acquisition systems, instrumentation, and industrial control. The component is provided on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SO |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
