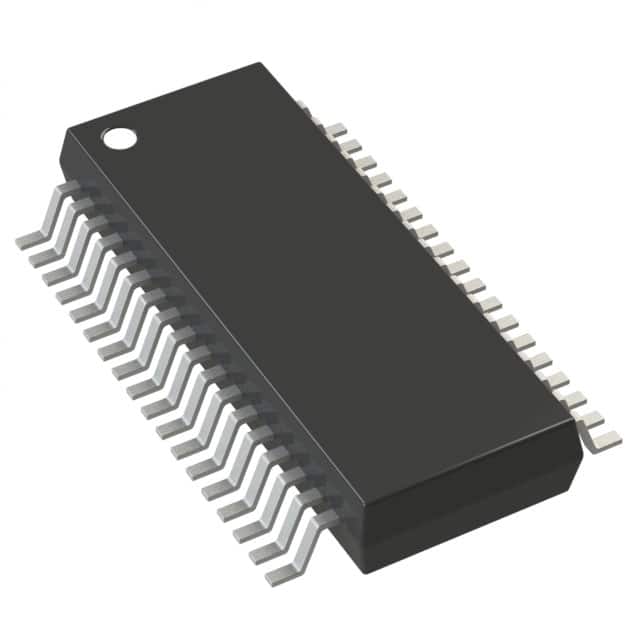

LTC1608AIG#TRPBF
IC ADC 16BIT SAR 36SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1608AIG-TRPBF is a 16-bit successive approximation register (SAR) Analog-to-Digital Converter (ADC). This component features a single input channel and operates with an internal or external voltage reference. The device supports both differential and single-ended input types, with selectable S/H:ADC ratios of 1:1. It offers a sampling rate of up to 500kSPS. The LTC1608AIG-TRPBF utilizes a parallel data interface for outputting its 16-bit conversion results. This surface-mount component is housed in a 36-SSOP package and is rated for operation across an industrial temperature range of -40°C to 85°C. Analog supply voltage can be ±5V, while digital supply is 5V. This ADC is suitable for applications in data acquisition systems, instrumentation, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 500k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 36-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
