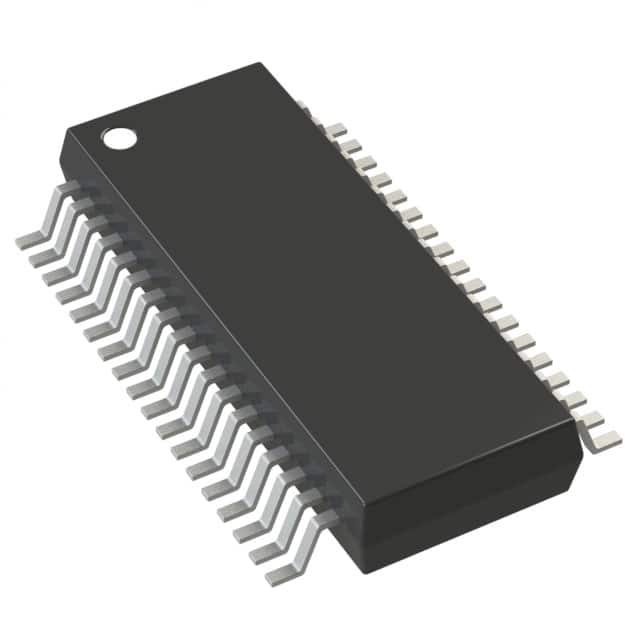

LTC1608ACG#TRPBF
IC ADC 16BIT SAR 36SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1608ACG-TRPBF is a 16-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single input channel with a sampling rate of 500 kSPS. It supports both differential and single-ended input types and offers a 1:1 S/H to ADC ratio. The LTC1608ACG-TRPBF utilizes an external or internal reference and operates with analog supply voltages of ±5V and a digital supply voltage of 5V. The device is housed in a 36-SSOP package and is supplied on tape and reel. Its architecture is SAR with a sample-and-hold (S/H) configuration and a parallel data interface. This component is suitable for applications in industrial automation, test and measurement, and medical instrumentation. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 500k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 36-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
