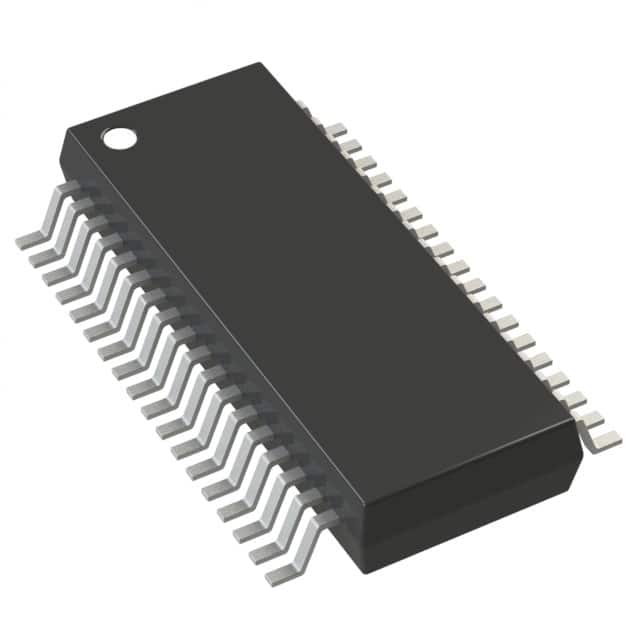

LTC1604IG#TRPBF
IC ADC 16BIT SAR 36SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1604IG-TRPBF is a 16-bit successive approximation (SAR) analog-to-digital converter (ADC) designed for high-precision data acquisition. This component features a single input channel and a 1:1 Sample-and-Hold (S/H) to ADC ratio, enabling accurate conversion of both differential and single-ended analog signals. The ADC offers a sampling rate of 333kSPS and supports external or internal voltage references. Its 36-SSOP package is suitable for surface-mount applications, and it operates within an industrial temperature range of -40°C to 85°C. Power requirements include ±5V for analog supply and 5V for digital supply. This device is utilized in various industries including industrial automation, test and measurement, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 36-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
