LTC1604AIG#90117
LTC1604AIG#90117Manufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

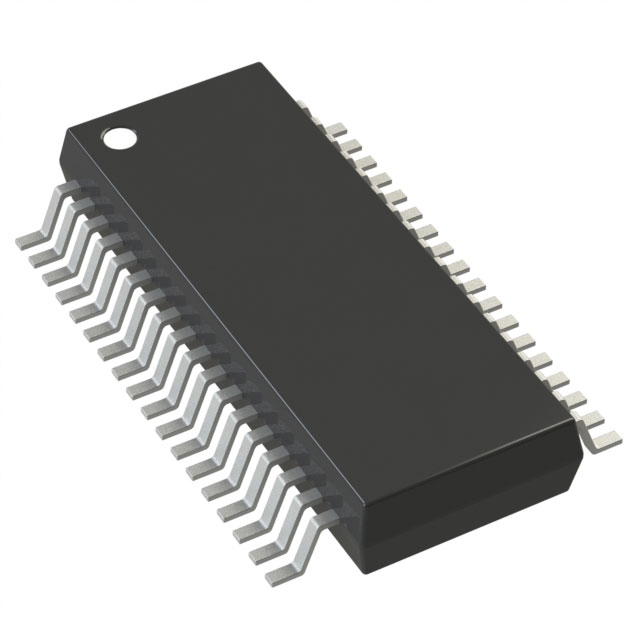

Analog Devices Inc. 16-bit SAR Analog-to-Digital Converter, part number LTC1604AIG-90117, offers a 333kSPS sampling rate with a single input channel. This component utilizes a Successive Approximation Register (SAR) architecture and provides a 1:1 Sample-and-Hold to ADC ratio. The LTC1604AIG-90117 supports both differential and single-ended input types, with configurable external or internal voltage references. Data is interfaced via a parallel connection. Operating across a temperature range of -40°C to 85°C, this device requires analog and digital supply voltages within the ±4.75V to ±5.25V range. Packaged in a 36-SSOP (0.209", 5.30mm Width) for surface mounting, it finds application in areas such as industrial automation and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | ±4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 36-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
