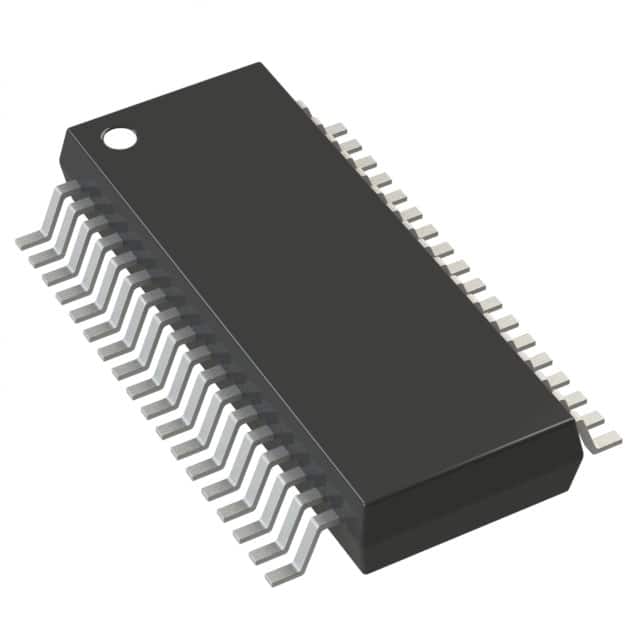

LTC1604ACG#TRPBF
IC ADC 16BIT SAR 36SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1604ACG-TRPBF is a 16-bit successive approximation analog-to-digital converter (ADC). This component features a single input channel and a sampling rate of 333kSPS. The architecture utilizes a Sample-and-Hold (S/H) circuit integrated with the ADC, offering a 1:1 ratio. Data is interfaced via a parallel connection. The device supports both differential and single-ended input types, with selectable external or internal voltage references. It operates with analog supply voltages of ±5V and a digital supply of 5V. The LTC1604ACG-TRPBF is presented in a 36-SSOP (Small Outline Shrink) surface-mount package, measuring 0.209" (5.30mm) in width, and is supplied on tape and reel. This component is suitable for applications in data acquisition, instrumentation, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 333k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 36-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
