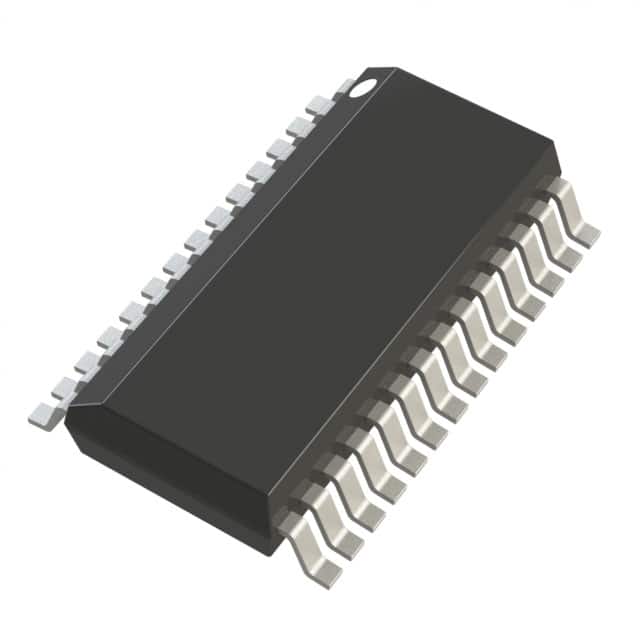

LTC1420CGN#TRPBF
IC ADC 12BIT PIPELINED 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1420CGN-TRPBF is a 12-bit pipelined analog-to-digital converter (ADC) designed for high-speed data acquisition. This single-channel component features a 10MSPS sampling rate and supports both differential and single-ended inputs, configurable with its integrated sample-and-hold (S/H) and programmable gain amplifier (PGA). The device offers flexibility with both internal and external reference options. Data is output via a parallel interface. The LTC1420CGN-TRPBF is housed in a 28-SSOP package and operates within an analog supply range of ±4.75V to 5.25V and a digital supply range of 2.7V to 5.25V. Its performance characteristics make it suitable for applications in test and measurement, medical imaging, and telecommunications. Packaging is provided on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 10M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
