LTC1419IG#TRPBF

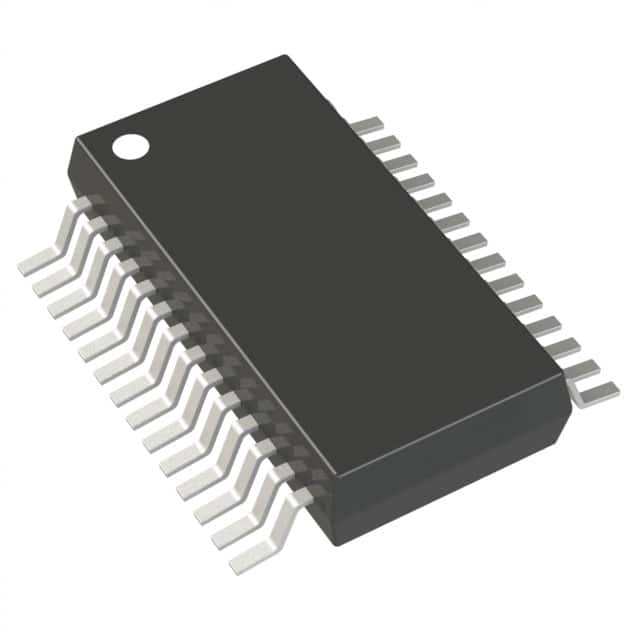

IC ADC 14BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1419IG-TRPBF is a 14-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) offering a 800kSPS sampling rate. This component features a single input channel with selectable differential or single-ended operation, configurable with a sample-and-hold (S/H) circuit. The LTC1419IG-TRPBF supports both external and internal voltage references and operates with analog supply voltages of ±5V and a digital supply of 5V. Its parallel data interface facilitates integration into various system architectures. Packaged in a 28-SSOP (0.209", 5.30mm width) on tape and reel, this device is suitable for surface mounting and operates within a temperature range of -40°C to 85°C. Applications include data acquisition systems, instrumentation, and industrial control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 800k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
