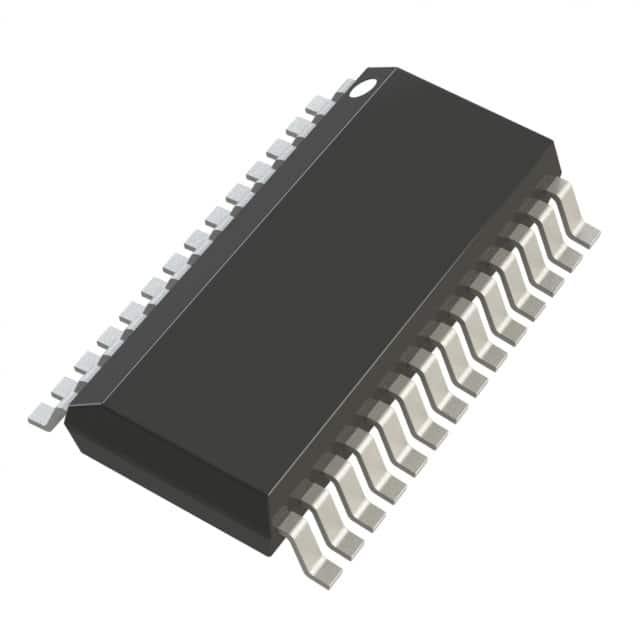

LTC1414CGN#TRPBF
IC ADC 14BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1414CGN-TRPBF is a 14-bit successive approximation analog-to-digital converter (ADC) featuring a single input channel. This component offers a high sampling rate of 2.2 MSPS, making it suitable for demanding applications. It supports both differential and single-ended input types with a flexible reference that can be external or internal. The device operates with analog supply voltages of ±5V and digital supply voltages of 5V. Its 28-SSOP package is designed for surface mounting. Applications for this ADC can be found in areas such as data acquisition systems, test and measurement equipment, and industrial control. The LTC1414CGN-TRPBF is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 2.2M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
